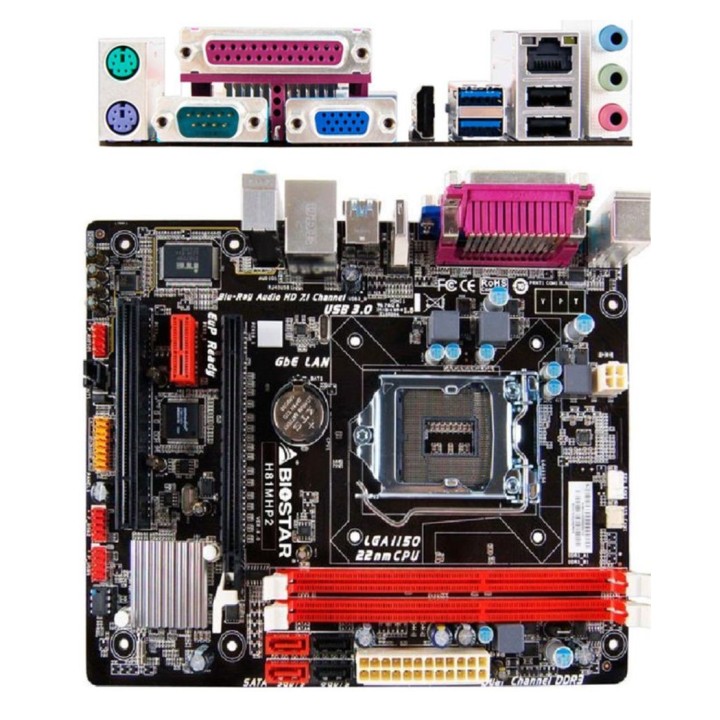

BIOSTAR μητρική LGA 1150, DDR3, VGA, PARRALEL, HDMI

BIOSTAR μητρική LGA 1150, DDR3, VGA, PARRALEL, HDMI

Supported the Intel 4th generation Core i7/ i5/ i3 processors in the 1150 package
Intel H81 single chip architecture
Supported 2 DIMM of DDR3 1600/1333/1066MHz up to 16G maximum capacity
Supports BIO-Remote 2 Technology
Supports Charger Booster Technology
Intel Smart Connect Technology
Intel Rapid Start Technology


Chipset : Intel H81

CPU SUPPORT :
Intel® Core™ i7 LGA 1150 Processor
Intel® Core™ i5 LGA 1150 Processor
Intel® Core™ i3 LGA 1150 Processor
Intel® Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt

MEMORY
Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory

EXPANSION SLOT
1 x PCI-E x16 2.0 Slot
1 x PCI-E x1 2.0 Slot
1 x PCI Slot


STORAGE
2 x SATA3 Connector
2 x SATA2 Connector

USB
2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header

LAN
Realtek RTL8111G - 10/100/1000 Controller

INTEGRATED VIDEO
By CPU model
Supports DX11.1

CODEC
Realtek ALC892 8-Channel Blu-ray Audio

REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x COM Port
1 x Printer Port
1 x HDMI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector

INTERNAL I/O
2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
2 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Header
1 x System Fan Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 22.6cm x 18cm ( W x L )

OS SUPPORT
Support Windows 7 / 8 / 8.1 / 10(x64)

BUNDLE SOFTWARE
BIO-Remote2
Smart Speed LAN

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

FEATURES
Windows 8 Compatible
Supports Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
